Printing Plate Cleaning system

The fully automatic, contact-free, in-line cleaning system for flexo printing plates. It is the only system in the world that cleans the printing plate during production, or performs an intensive post-production cleaning process.

The PPC base module contains the high pressure pump, a vacuum pump with cyclone and the control for individual adjustment and observation of the printing stations.

  • Higher and consistent print quality

  • Standard- and turbo cleaning

  • No production downtime due to printing plate cleaning

  • No damages to the printing plates

  • No manual cleaning

  • Less production waste

  • Safe operation by remote control


DOWNLOAD BROCHURE
TRESU Plate Cleaner

PPCiconpic
EN| JP

ANIMATION

PPC
 MP4|


PRESENTATION

TRESU Plate Cleaner

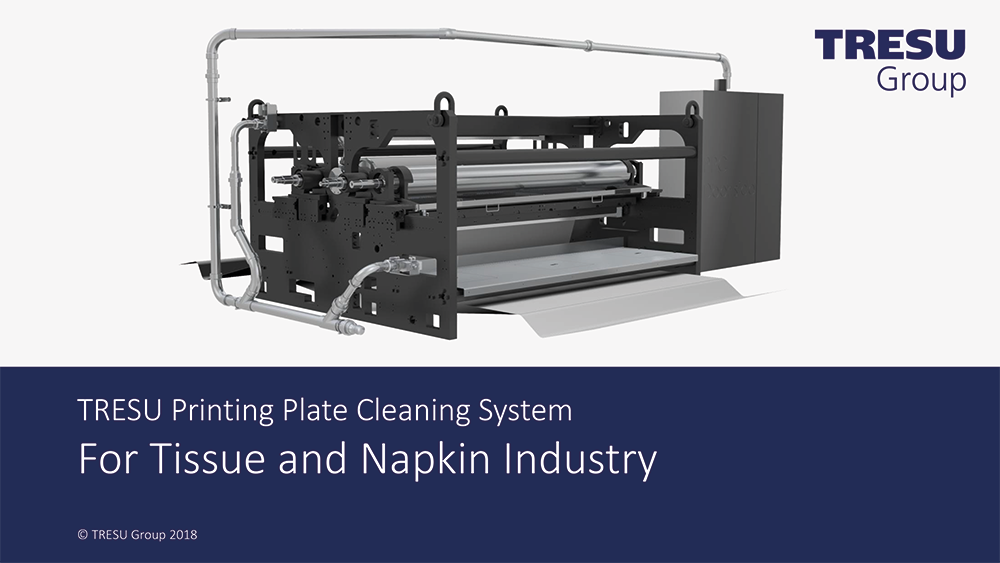

TRESU-Printing-Plate-Cleaning-System-for-Tissue_1000
EN|


TECHNICAL SPECIFICATIONS

VELOCITY OF THE CLEANING HEAD

 40 - 100 mm/sec

LIQUID CONSUMPTION AT CLEAN

 4 - 6 L/hour

AIR CONSUMPTION PER ACTIVE STATION

 0,13 m3/min at 6 bar / 0,75 m3/min free air

VACUUM

 Max. 250 mbar

CONTROL CABINET

 IP54

WATER

 Clean, lime free
