TRESU Agitators: Mix and Match!

ManagE dispersion and minimize micro-foaming

TRESU agitators are indispensable tools in the flexo printing industry, given their ability to handle micro foaming, maintain product uniformity, and are a critical part of securing the quality of a printing process.

Applications
All applications where micro-foam occurs would benefit from adding an agitator, but mainly when printing water-based color, coating or adhesive or for mixing other substrates that tend to sediment.

Pneumatic agitators harness compressed air to generate motion, making them appropriate for use in environments where safety or cleanliness are paramount. However, agitators can not be used for packaging for the food industry, since the oil to lubricate the motor is not food approved.

Electric agitators rely on electric motors to power their movement and are typically more energy-efficient and versatile in terms of speed and torque control.

MixnMatchAgitatorswebpage1200x428

All WB inks, coatings and adhesives produce micro-foam at large consumption or at broad printing surfaces, but by properly and efficiently managing the dispersion of inks, coatings, and other media, TRESU agitators offers:

  • Consistent media product quality and reduced micro-foaming

  • Uniform consistency when mixing of 2 products –preventing sedimentation

  • Stable operation with less waste

  • The pneumatic agitator offers reduced velocity of the agitator and thus reduced costs and noise levels

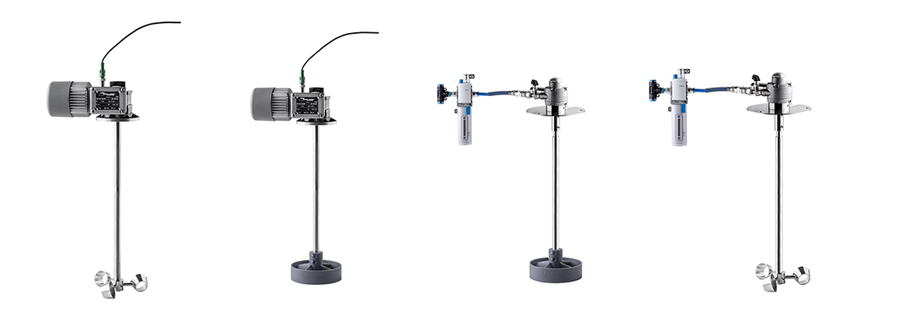

  • Modular Mix & Match choices between an electric- or a pneumatic agitator and either a competitive 3D engineered impeller or a durable stainless steel impeller - for food applications



                DOWNLOAD Datasheet


                TRESU Agitator Screenshot






TECHNICAL SPECIFICATIONS

DIMENSIONS

 Height 501 mm | 19.5"
 Width 226 mm | 8.8"
 Depth 150 mm | 5.9"

WEIGHT

 Pneumatic with steel impeller:              2.60 kg | 5.72 lb
 Pneumatic with 3D impelller:                1.85 kg | 4.07 lb
 Electric with stainless steel impeller:      8.70 kg | 19.14 lb
 Electric with 3D impeller                       7.95 kg | 17.49 lb

MOTOR & POWER CONSUMPTION

 Electrical agitator: 3W motor | 24 Voltage | 0.06 kWh/hour

 Pneumatic agitator: Max pressure 7 bar | Air consumption  0.5 l/s at 500 RPM

ENERGY CLASS

 IE1 (Mini motor)

 VOLTAGE

 200 - 230 VAC / 50 - 60 Hz

 ROTATIONAL SPEED

 373 rpm

 USAGE IN FOOD INDUSTRY

 Electric: Yes

 Pneumatic: No (Non-approved oil lubrication)

 3D impeller: No

 Stainless steel impeller: Yes

 APPLICATIONS

 All applications where micro-foam occurs, mainly machines with
  a water based color, coating or adhesive.

 Also for mixing other substrates that tend to sediment.
